Electrical Electronics Vent Membrana Eptfe Ptfe Uf Membrane
Key Attributes
Brand Name:
XINXIA
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
50 m2
Price:
450 RMB/m2
Supply Ability:
3000 m2/day
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Automotive & Electronics Vent Membrane Colorful Vent Membrane XINXIA-DB10D Model: XINXIA-BT20D This series of membranes is designed for use in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, and Household Electrical and Electronics, among others. The ...
Product Custom Attributes
Highlight
Electrical membrana eptfe
,Electronics membrana eptfe
,black ptfe uf membrane
PRODUCT NAME:
Automotive & Electronics Vent Membrane
PRODUCT MODEL:
XINXIA-BT20D
PRODUCT DESCRIPTION:
E-PTFE Oleophobic And Hydrophobic Breathable Membrane
APPLICATION FEILD:
Automotive & Electronics
APPLICATION PRODUCTS:
/
PHYSICAL PROPERTIES:
PFOA & PFOS
REFERED TEST STANDARD:
US EPA 3550C & US EPA8321B
UNIT:
℃
TYPICAL DATA:
PFOA & PFOS Free
Product Description

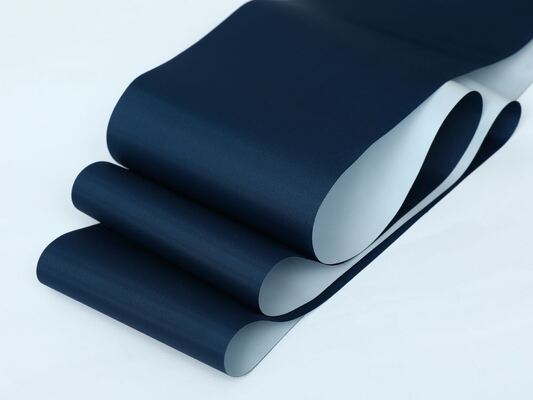

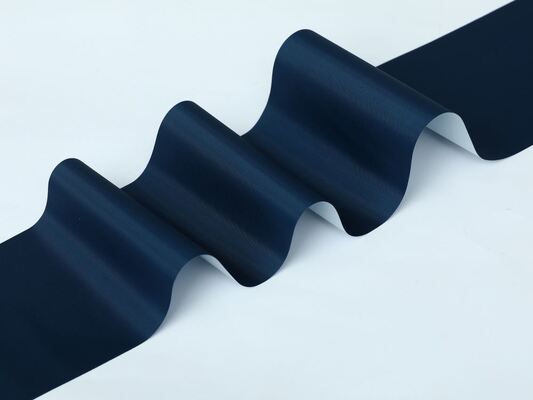

Automotive & Electronics Vent Membrane
Colorful Vent Membrane XINXIA-DB10D
Model: XINXIA-BT20D
This series of membranes is designed for use in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, and Household Electrical and Electronics, among others.
The membrane balances inside/outside pressure differentials of sealed enclosures while blocking contaminants, which increases components’ reliability and extends their service life.
Key Benefits:
- Pressure Equalization: Maintains optimal pressure balance within sealed enclosures.
- Contaminant Blocking: Prevents the ingress of harmful contaminants.
- Enhanced Reliability: Increases the reliability of sensitive electronic components.
- Extended Service Life: Prolongs the operational lifespan of your products.
- Versatile Application: Suitable for a wide range of automotive and electronics applications.
Target Industries & Applications:
Automotive, Electronics, Outdoor Lighting, Household Appliances
Product Attributes
No attributes specified.
Technical Specifications
| Property | Test Standard | Unit | Typical Data |
|---|---|---|---|
| Membrane Color | / | / | Black |
| Membrane Construction | / | / | PTFE / PET Fabric |
| Membrane Surface Property | / | / | Hydrophobic |
| Thickness | ISO 534 | mm | 0.12±0.05 |
| Interlayer Bonding Strength (90 degree peel) | Internal Method | N/inch | >2 |
| Min Air Flow Rate | ASTM D737 (Test area:1 cm²) | ml/min/cm²@ 7Kpa | >1300 |
| Typical Air Flow Rate | ASTM D737 (Test area:1 cm²) | ml/min/cm²@ 7Kpa | 2000 |
| Water Entry Pressure | ASTM D751 (Test area:1 cm²) | KPa for 30 sec | >50 |
| IP Rating | IEC 60529 | / | IP68 |
| Water Vapor Transmission Rate (evaporation) | GB/T 12704.2 (38℃/50%RH ,Cupping method) | g/m2/24h | >5000 |
| Oleophobic Grade | AATCC 118 | Grade | NA |
| Operation Temperature | IEC 60068-2-14 | ℃ | -40℃ ~ 125℃ |
| ROHS | IEC 62321 | / | Meet ROHS Requirements |
| PFOA & PFOS | US EPA 3550C & US EPA8321B | / | PFOA & PFOS Free |
