Oleophobic Hydrophobic E PTFE Membrane 0.13mm Breathable Ptfe Membrane Sheet
Key Attributes
Brand Name:
XINXIA
Place of Origin:
CHINA
Certification:
ISO9001;FDA
Minimum Order Quantity:
20000PCS
Price:
0.5-5 RMB/PCS
Supply Ability:
500000PCS/DAY
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Automotive & Electronics Vent Membrane ePTFE Vent membrane XINXIA-MA10D This series of membranes can be used in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, Household Electrical and Electronics etc. The membrane can balance inside/outside pressure ...
Product Custom Attributes
Highlight
Oleophobic E PTFE Membrane
,Hydrophobic E PTFE Membrane
,0.13mm breathable ptfe membrane sheet
PRODUCT NAME:
Automotive & Electronics Vent Membrane
PRODUCT MODEL:
XINXIA-MA10D
PRODUCT DESCRIPTION:
E-PTFE Oleophobic And Hydrophobic Breathable Membrane
APPLICATION FEILD:
Automotive & Electronics
APPLICATION PRODUCTS:
/
PHYSICAL PROPERTIES:
REFERED TEST STANDARD
UNIT:
℃
Membrane Color:
/
TYPICAL DATA:
PFOA & PFOS Free
Membrane Construction:
/
Membrane Surface Property:
/
Thickness:
ISO 534
Interlayer Bonding Strength (90 Degree Peel):
Internal Method
Min Air Flow Rate:
ASTM D737 (Test Area：1 Cm²)
Typical Air Flow Rate:
ASTM D737 (Test Area：1 Cm²)
Water Entry Pressure:
ASTM D751 (Test Area：1 Cm²)
IP Rating:
IEC 60529
Water Vapor Transmission Rate (evaporation):
GB/T 12704.2 (38℃/50%RH 、Cupping Method)
Oleophobic Grade:
AATCC 118
Operation Temperature:
IEC 60068-2-14
ROHS:
IEC 62321
PFOA & PFOS:
US EPA 3550C & US EPA 8321B
Product Description

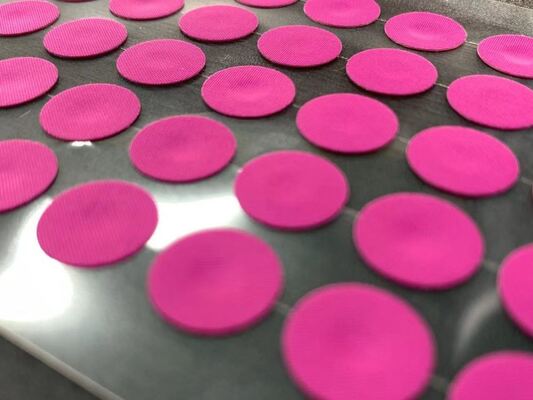

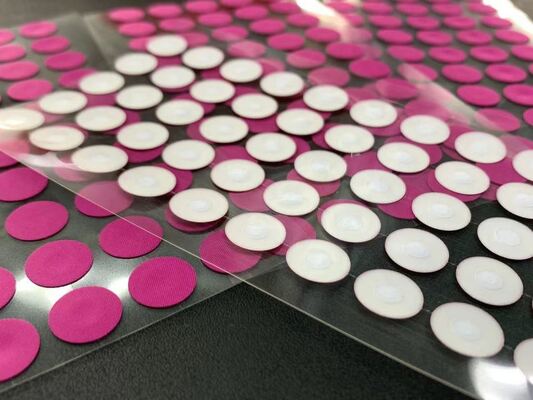

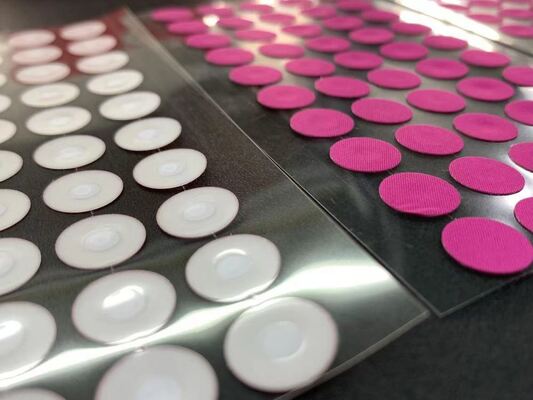

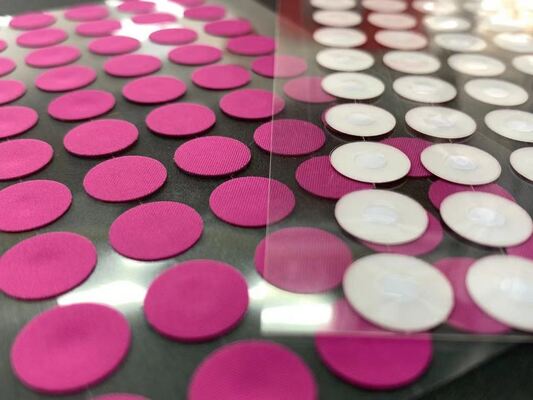

Automotive & Electronics Vent Membrane
ePTFE Vent membrane XINXIA-MA10D
This series of membranes can be used in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, Household Electrical and Electronics etc.
The membrane can balance inside/outside pressure differentials of sealed enclosures while blocking contaminants, which could increase components’ reliability and extend their service life.
Key Benefits:
- ✅ Balances pressure differentials in sealed enclosures.
- ✅ Blocks contaminants, improving reliability.
- ✅ Extends the service life of components.
- ✅ Suitable for a wide range of automotive and electronics applications.
Target Industries: Automotive, Electronics, Outdoor Lighting, Household Appliances.
Product Attributes
No specific attributes provided.
Technical Specifications
| PRODUCT NAME | PRODUCT MODEL | PRODUCT DESCRIPTION | APPLICATION FEILD |
|---|---|---|---|
| Automotive & Electronics Vent Membrane | XINXIA-MA10D | e-PTFE Oleophobic and Hydrophobic breathable membrane | Automotive & Electronics |
| PHYSICAL PROPERTIES | UNIT | TYPICAL DATA |
|---|---|---|
| Membrane Color | / | Purple/Magenta |
| Membrane Construction | / | PTFE / PET Fabric |
| Membrane Surface Property | / | Hydrophobic |
| Thickness | mm | 0.13±0.05 |
| Interlayer Bonding Strength (90 degree peel) | N/inch | ＞5 |
| Min Air Flow Rate | ml/min/cm²@ 7Kpa | >900 |
| Typical Air Flow Rate | ml/min/cm²@ 7Kpa | 1400 |
| Water Entry Pressure | KPa for 30 sec | >110 |
| IP Rating | / | IP68 |
| Water Vapor Transmission Rate (evaporation) | g/m2/24h | >5000 |
| Oleophobic Grade | Grade | ≥7 |
| Operation Temperature | ℃ | -40℃ ~ 125℃ |
| ROHS | / | Meet ROHS Requirements |
| PFOA & PFOS | / | PFOA & PFOS Free |
