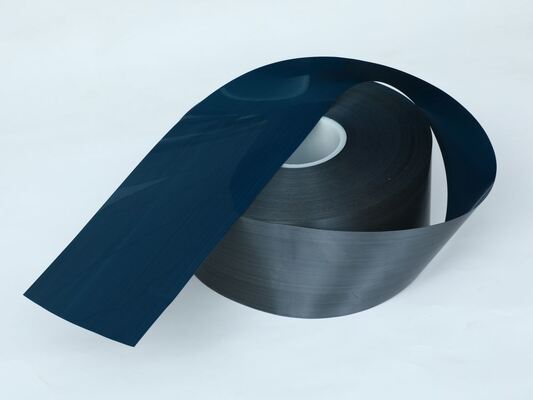

100 Percent Automotive EPTFE Membrane Vent Electronics Hydrophobic Ptfe
Key Attributes
Brand Name:
XINXIA
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
Contact for details
Price:
400rmb/m²
Supply Ability:
3000m² /day
Delivery Time:
10 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Technical Data Sheet PRODUCT NAME Automotive & Electronics Vent Membrane PRODUCT MODEL XINXIA-G80WO PRODUCT DESCRIPTION e-PTFE Oleophobic and Hydrophobic breathable membrane APPLICATION FEILD Automotive & Electronics APPLICATION PRODUCTS / Membrane Properties PHYSICAL PROPERTIES REFERED TEST ...
Product Custom Attributes
Highlight
100 percent eptfe membrane
,Automotive eptfe membrane
,Electronics hydrophobic ptfe
PRODUCT NAME:
Automotive & Electronics Vent Membrane
PRODUCT MODEL:
XINXIA-G80WO
PRODUCT DESCRIPTION:
E-PTFE Oleophobic And Hydrophobic Breathable Membrane
APPLICATION FEILD:
Automotive & Electronics
APPLICATION PRODUCTS:
/
PHYSICAL PROPERTIES:
Oleophobic Grade
REFERED TEST STANDARD:
AATCC 118
UNIT:
Grade
TYPICAL DATA:
≥7
Product Description
Technical Data Sheet
|
PRODUCT NAME |
Automotive & Electronics Vent Membrane |
|
PRODUCT MODEL |
XINXIA-G80WO |
|
PRODUCT DESCRIPTION |
e-PTFE Oleophobic and Hydrophobic breathable membrane |
|
APPLICATION FEILD |
Automotive & Electronics |
|
APPLICATION PRODUCTS |
/ |
Membrane Properties
|
PHYSICAL PROPERTIES |
REFERED TEST STANDARD |
UNIT |
TYPICAL DATA |
|---|---|---|---|
|
Membrane Color |
/ |
/ |
Dark Gray |
|
Membrane Construction |
/ |
/ |
PTFE |
|
Membrane Surface Property |
/ |
/ |
Oleophobic/Hydrophobic |
|
Thickness |
ISO 534 |
mm |
0.19±0.05 |
|
Interlayer Bonding Strength (90 degree peel) |
Internal Method |
N/inch |
NA |
|
Min Air Flow Rate |
ASTM D737 (test area:1 cm²) |
ml/min/cm²@ 7Kpa |
>250 |
|
Typical Air Flow Rate |
ASTM D737 (Test area:1 cm²) |
ml/min/cm²@ 7Kpa |
500 |
|
Water Entry Pressure |
ASTM D751 (Test area:1 cm²) |
KPa for 30 sec |
>40 |
|
IP Rating |
IEC 60529 |
/ |
IP68 |
|
Water Vapor Transmission Rate |
GB/T 12704.2 (38℃/50%RH, Cupping method) |
g/m2/24h |
>5000 |
|
Oleophobic Grade |
AATCC 118 |
Grade |
≥7 |
