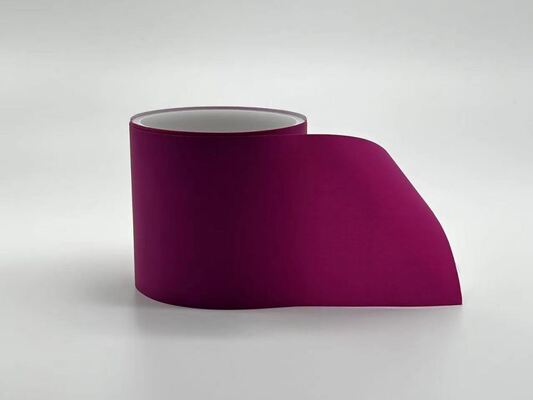

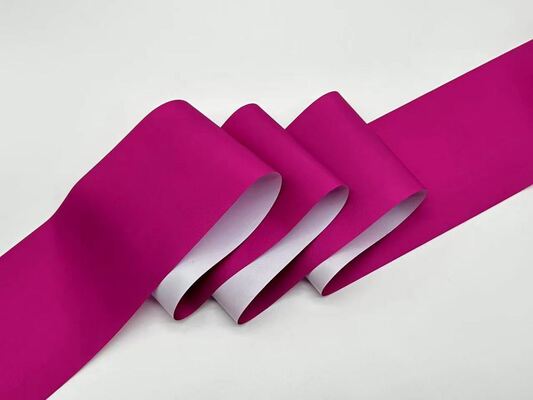

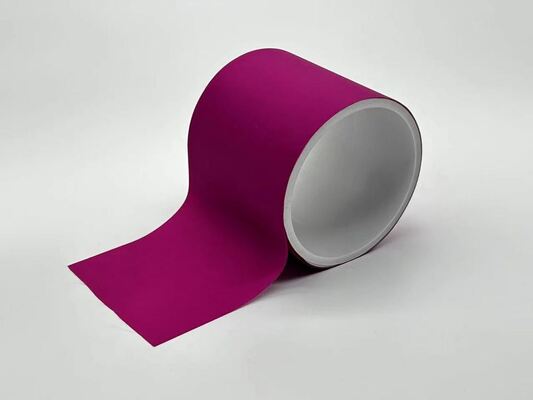

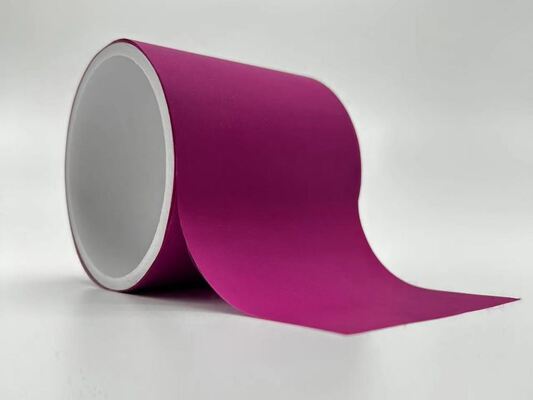

Magenta Eptfe Membrane IP68 Rohs Vent Breathable Membrane For Vents
Key Attributes
Brand Name:
XINXIA
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
50 m2
Price:
450 RMB/m2
Supply Ability:
3000 m2/day
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Colorful Vent Membrane XINXIA-MA10D PRODUCT NAME Automotive & Electronics Vent Membrane PRODUCT MODEL XINXIA-MA10D PRODUCT DESCRIPTION e-PTFE Oleophobic and Hydrophobic breathable membrane APPLICATION FEILD Automotive & Electronics APPLICATION PRODUCTS / Membrane Properties PHYSICAL PROPERTIES ...
Product Custom Attributes
Highlight
Magenta eptfe membrane vent
,e ptfe venting IP68
,rohs breathable membrane for vents
PRODUCT NAME:
Automotive & Electronics Vent Membrane
PRODUCT MODEL:
XINXIA-MA10D
PRODUCT DESCRIPTION:
E-PTFE Oleophobic And Hydrophobic Breathable Membrane
APPLICATION FEILD:
Automotive & Electronics
APPLICATION PRODUCTS:
/
PHYSICAL PROPERTIES:
PFOA & PFOS
REFERED TEST STANDARD:
US EPA 3550C & US EPA8321B
UNIT:
℃
TYPICAL DATA:
PFOA & PFOS Free
Product Description
Colorful Vent Membrane XINXIA-MA10D
|
PRODUCT NAME |
Automotive & Electronics Vent Membrane |
|
PRODUCT MODEL |
XINXIA-MA10D |
|
PRODUCT DESCRIPTION |
e-PTFE Oleophobic and Hydrophobic breathable membrane |
|
APPLICATION FEILD |
Automotive & Electronics |
|
APPLICATION PRODUCTS |
/ |
Membrane Properties
|
PHYSICAL PROPERTIES |
REFERED TEST STANDARD |
UNIT |
TYPICAL DATA |
|---|---|---|---|
|
Membrane Color |
/ |
/ |
Purple/Magenta |
|
Membrane Construction |
/ |
/ |
PTFE / PET Fabric |
|
Membrane Surface Property |
/ |
/ |
Hydrophobic |
|
Thickness |
ISO 534 |
mm |
0.13±0.05 |
|
Interlayer Bonding Strength (90 degree peel) |
Internal Method |
N/inch |
>2 |
|
Min Air Flow Rate |
ASTM D737 (Test area:1 cm²) |
ml/min/cm²@ 7Kpa |
>900 |
|
Typical Air Flow Rate |
ASTM D737 (Test area:1 cm²) |
ml/min/cm²@ 7Kpa |
1400 |
|
Water Entry Pressure |
ASTM D751 (Test area:1 cm²) |
KPa for 30 sec |
>110 |
|
IP Rating |
IEC 60529 |
/ |
IP68 |
|
Water Vapor Transmission Rate (evaporation) |
GB/T 12704.2 (38℃/50%RH ,Cupping method) |
g/m2/24h |
>5000 |
|
Oleophobic Grade |
AATCC 118 |
Grade |
NA |
|
Operation Temperature |
IEC 60068-2-14 |
℃ |
-40℃ ~ 125℃ |
|
ROHS |
IEC 62321 |
/ |
Meet ROHS Requirements |
|
PFOA & PFOS |
US EPA 3550C & US EPA 8321B |
/ |
PFOA & PFOS Free |
