0.5–4.0 mm Custom PE-Laminated PTFE Membrane Double-Ring Gasket for Chemical Drum Lid Sealing

Product Overview

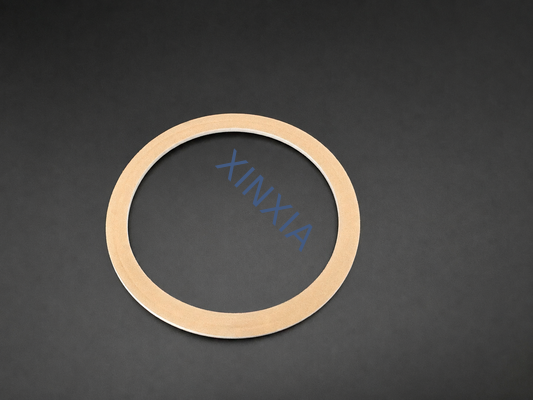

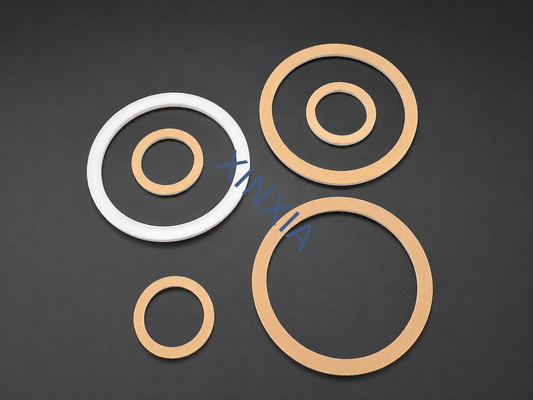

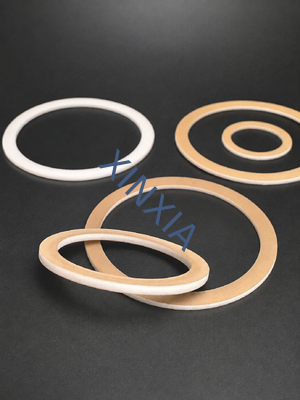

The XINXIA PE-laminated PTFE membrane double-ring gasket is a customizable sealing liner designed for chemical drum caps, chemical container lids, and packaging systems that require reliable sealing and controlled pressure equalization. The gasket combines a PTFE functional membrane, PUR adhesive, PET film, EPE foam, PE film, and a customizable bottom sealing layer in a multilayer structure. Its double-ring design provides defined sealing and venting areas while helping maintain stable contact between the cap and container opening.

The finished gasket thickness can be customized from 0.5 mm to 4.0 mm, and its diameter, inner-ring size, outer-ring size, shape, membrane position, and material combination can be produced according to the customer’s cap drawing. It is suitable for packaging chemicals that may generate gas, experience pressure changes, or require protection against liquid leakage and external contamination.

For B2B buyers, chemical packaging manufacturers, cap factories, and filling companies in the XXX market, XINXIA provides material selection, structural design, prototype sampling, die cutting, membrane laminating, and production support.

Cause: Why Chemical Drums Need a Specialized Sealing Gasket

Chemical products can create demanding conditions inside a closed drum or container. Temperature changes during transportation, warehouse storage, and outdoor exposure may cause the internal air or vapor to expand and contract. Some chemical formulations can also slowly generate gas after filling.

When a standard solid foam liner is used, pressure may accumulate inside the container. This can lead to drum deformation, cap bulging, leakage around the closure, or product discharge when the cap is opened. If the liner is too hard, too thin, or chemically incompatible with the contents, it may not compensate for dimensional tolerances between the cap and drum opening.

Ordinary vented liners can present different problems. A poorly designed venting area may allow liquid to contact the membrane continuously, while an incorrectly selected membrane may not provide the required balance between airflow and liquid resistance. Inconsistent liner dimensions may also cause assembly difficulties or unstable sealing performance.

Chemical drum packaging therefore requires a customized sealing solution based on the container opening, cap structure, product composition, storage position, internal pressure, and transportation conditions.

Solution: Custom Double-Ring Sealing and Venting Structure

The PE-laminated PTFE double-ring gasket combines a compressible EPE foam layer with a functional PTFE membrane structure. The foam core provides compression and helps the gasket adapt to minor dimensional differences between the cap and container mouth. The PTFE membrane provides a controlled gas transmission path while acting as a functional barrier against liquid and external contaminants.

The double-ring configuration creates separate functional zones. One ring supports sealing around the container mouth, while the other helps form or guide the venting channel. The exact design can be adjusted according to the cap’s internal geometry and the location of the vent hole.

XINXIA can customize the gasket diameter, total thickness, inner and outer ring dimensions, membrane area, die-cut shape, and bottom sealing surface. Before mass production, buyers can provide a cap drawing, container-mouth dimensions, chemical information, and expected operating conditions for engineering review and sample testing.

Specifications

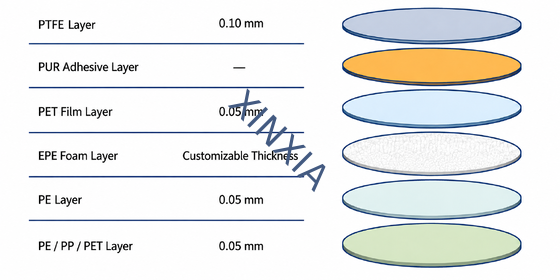

Reference Multilayer Structure

The gasket structure can be produced according to the following reference configuration:

The EPE foam layer is adjusted to achieve the required finished gasket thickness of 0.5–4.0 mm. The listed layer thicknesses are reference values and can be modified after evaluation of the cap, container, chemical formulation, and sealing requirements.

Applications

The custom PE-coated PTFE double-ring gasket is suitable for a wide range of industrial chemical packaging applications, including:

• Chemical drum caps and pail lids
• Agricultural chemical and pesticide containers
• Liquid fertilizer packaging
• Cleaning chemical and detergent containers
• Bleach and disinfectant packaging
• Hydrogen peroxide and oxygen-releasing formulations
• Drain cleaner and mold-removal product containers
• Industrial additive and treatment-agent packaging
• Other gas-generating or pressure-sensitive chemical containers

The final gasket material must be verified against the actual packaged chemical. Buyers should provide product composition, concentration, storage temperature, filling temperature, and transportation requirements before confirming mass-production specifications.

How It Works

After installation inside the drum cap, the EPE foam layer is compressed between the cap and the container mouth. This compression creates sealing pressure and helps compensate for small variations in the closure system.

When internal gas pressure increases, gas reaches the designed venting channel in the double-ring structure. It then passes through the PTFE membrane at a controlled rate. The membrane helps reduce direct liquid penetration while allowing pressure equalization.

When the external pressure changes, the same membrane structure can help balance the pressure difference between the inside and outside of the container. This reduces stress on the cap, drum wall, and sealing area.

The PET and PE supporting layers improve the stability of the composite structure and assist with processing, assembly, and sealing-surface compatibility. The bottom PE, PP, or PET layer can be selected according to the cap material and packaging design.

Actual sealing, airflow, and liquid-resistance performance depend on the membrane grade, membrane area, gasket compression, cap torque, vent-hole design, chemical compatibility, and container orientation. Complete packaging tests should therefore be conducted before commercial filling.

How to Choose the Right Double-Ring Gasket

1. Confirm the Cap and Container Dimensions
2. Select the Finished Thickness
3. Provide Chemical Information
4. Define the Venting Requirement
5. Test Samples Before Mass Production

1. Confirm the Cap and Container Dimensions

Provide the cap inner diameter, container-mouth outer diameter, sealing-land width, vent-hole position, and available installation space. A technical drawing is preferred, but physical cap and container samples can also be evaluated.

2. Select the Finished Thickness

The gasket is available in thicknesses from 0.5 mm to 4.0 mm. A thicker foam core generally provides more compression compensation, but excessive thickness may increase cap-closing resistance or affect the cap thread engagement. The correct thickness should be selected through assembly testing.

3. Provide Chemical Information

Chemical name, concentration, pH range, solvent content, filling temperature, and expected storage conditions are important for material selection. The gasket should not be selected only according to container diameter.

4. Define the Venting Requirement

Tell us whether the primary concern is slow gas generation, rapid pressure increase, temperature-related pressure changes, or protection against container deformation. Required airflow and liquid-resistance targets should be provided when available.

5. Test Samples Before Mass Production

Sample testing should include cap assembly, sealing, leakage, pressure equalization, chemical compatibility, storage orientation, temperature cycling, and transportation simulation. XINXIA can produce customized samples based on the confirmed drawing.

Why Choose XINXIA?

XINXIA specializes in sealing materials, breathable membranes, venting valves, and customized packaging components. We support customers from initial material selection through sample development and mass production.

Our customizable manufacturing capabilities include multilayer lamination, precision die cutting, double-ring forming, membrane positioning, and quality inspection. For new chemical packaging projects, our team can review the cap design and recommend a gasket structure based on the required sealing and venting functions.

Send us your cap drawing, gasket dimensions, packaged chemical information, required thickness, estimated order quantity, and test conditions to receive a customized recommendation and sample quotation.

FAQ

1. Can the gasket diameter and double-ring dimensions be customized?

Yes. The outer diameter, inner diameter, ring width, venting area, membrane position, and die-cut shape can be customized according to your cap drawing or physical sample.

2. Is 0.5–4.0 mm the thickness of the EPE foam layer?

It is the available finished gasket thickness range. The EPE foam thickness can be adjusted according to the required total thickness and the thickness of the other laminated layers.

3. Can this gasket be used with every type of chemical?

No single gasket structure is suitable for every chemical formulation. Chemical compatibility and packaging performance must be confirmed using the actual product, cap, container, and storage conditions.

4. What information is required to develop a sample?

Please provide the cap and container drawings, gasket diameter, inner and outer ring dimensions, total thickness, vent-hole location, chemical information, expected airflow or pressure requirements, and estimated annual quantity.

5. Can XINXIA supply samples before mass production?

Yes. Customized samples can be produced for assembly, sealing, venting, and chemical-compatibility testing. Mass-production specifications should be finalized only after the complete packaging system passes the customer’s validation tests.
