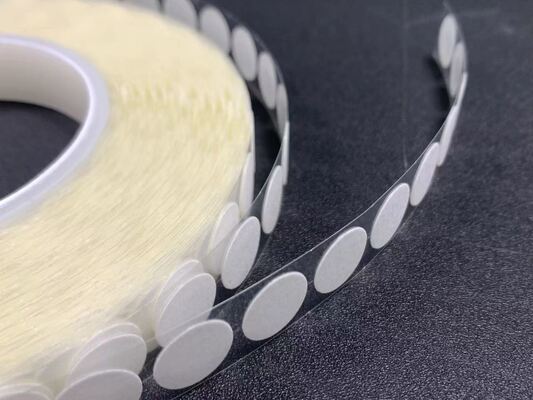

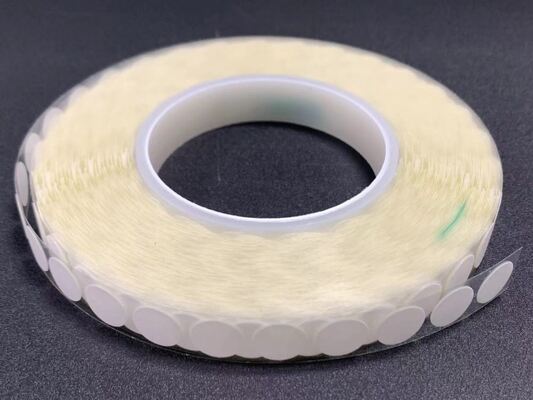

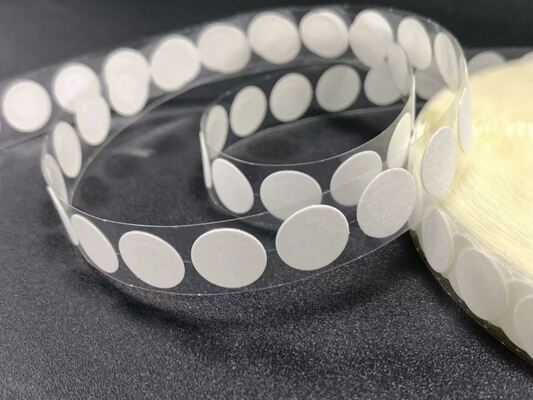

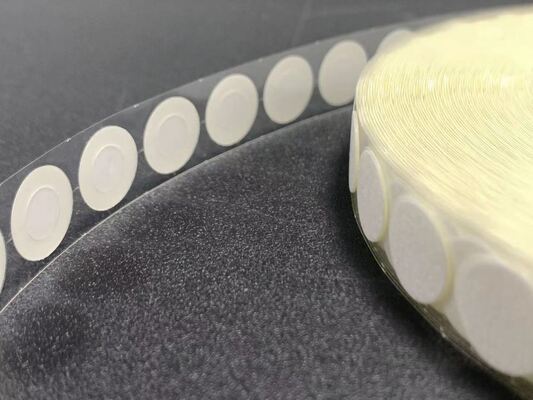

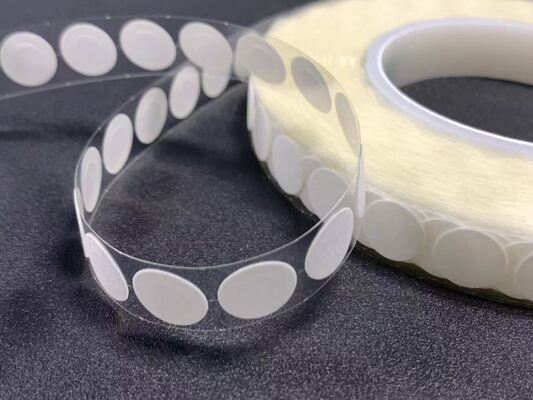

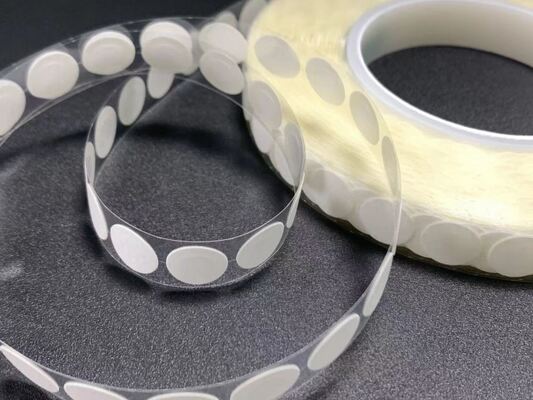

Automotive Industrial Vent Membrane Electronics EPTFE Membrane
Key Attributes
Brand Name:
XINXIA
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
50 m2
Price:
450 RMB/m2
Supply Ability:
3000 m2/day
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Automotive & Electronics Vent Membrane ePTFE Vent membrane XINXIA-E10W60 This series of membranes could be used in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, Household Electrical and Electronics etc. The membrane can balance inside/outside ...
Product Custom Attributes
Highlight
Automotive Vent Membrane
,Industrial Vent Membrane
,Electronics ePTFE membrane
PRODUCT NAME:
Automotive & Electronics Vent Membrane
PRODUCT MODEL:
XINXIA-E10W60
PRODUCT DESCRIPTION:
E-PTFE Oleophobic And Hydrophobic Breathable Membrane
APPLICATION FEILD:
Automotive & Electronics
APPLICATION PRODUCTS:
/
PHYSICAL PROPERTIES:
PFOA & PFOS
REFERED TEST STANDARD:
US EPA 3550C & US EPA8321B
UNIT:
℃
TYPICAL DATA:
PFOA & PFOS Free
Product Description
Automotive & Electronics Vent Membrane
ePTFE Vent membrane XINXIA-E10W60
This series of membranes could be used in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, Household Electrical and Electronics etc.
The membrane can balance inside/outside pressure differentials of sealed enclosures while blocking contaminants, which could increase components’ reliability and extend their service life.
Key Benefits:
- Balances pressure differentials
- Blocks contaminants
- Increases component reliability
- Extends service life
Target Industries & Applications:
Automotive, Electronics, Outdoor Lighting, Household Appliances
Technical Specifications
| Property | Refered Test Standard | Unit | Typical Data |
|---|---|---|---|
| PRODUCT NAME | Automotive & Electronics Vent Membrane | ||
| PRODUCT MODEL | XINXIA-E10W60 | ||
| PRODUCT DESCRIPTION | e-PTFE Oleophobic and Hydrophobic breathable membrane | ||
| APPLICATION FEILD | Automotive & Electronics | ||
| APPLICATION PRODUCTS | / | ||
| Membrane Color | / | / | White |
| Membrane Construction | / | / | PTFE / PO non-woven |
| Membrane Surface Property | / | / | Hydrophobic |
| Thickness | ISO 534 | mm | 0.18±0.05 |
| Interlayer Bonding Strength (90 degree peel) | Internal Method | N/inch | ＞2 |
| Min Air Flow Rate | ASTM D737 (Test area:1 cm²) | ml/min/cm²@ 7Kpa | >1600 |
| Typical Air Flow Rate | ASTM D737 (Test area:1 cm²) | ml/min/cm²@ 7Kpa | 2500 |
| Water Entry Pressure | ASTM D751 (Test area:1 cm²) | KPa for 30 sec | >70 |
| IP Rating | IEC 60529 | / | IP68 |
| Water Vapor Transmission Rate (evaporation) | GB/T 12704.2 (38℃/50%RH ,Cupping method) | g/m2/24h | >5000 |
| Oleophobic Grade | AATCC 118 | Grade | NA |
| Operation Temperature | IEC 60068-2-14 | ℃ | -40℃ ~ 100℃ |
| ROHS | IEC 62321 | / | Meet ROHS Requirements |
| PFOA & PFOS | US EPA 3550C & US EPA 8321B | / | PFOA & PFOS Free |
