Quality Breathable Vent Valve Screw In PFOS Snap In Vent factory

Breathable Vent Valve Screw In PFOS Snap In Vent

Key Attributes

Brand Name: XINXIA

Place of Origin: CHINA

Certification: ISO9001

Minimum Order Quantity: 5000PCS

Price: 2USD/PCS

Supply Ability: 5000000 PCS/ DAY

Delivery Time: 5-8 working days

Payment Terms: T/T

Standard Packaging: Corrugated Carton / Box

XINXIA-LWVV_M8x1.25-10_TDS.pdf

PDF

Product Summary

XINXIA® Screw-In Breathable Valve Screw in vent valve XINXIA-LWVV_M8*1.25-10 Equalize pressure and reduce condensation in sealed enclosures, protecting sensitive electronics from harsh environments. Changing harsh environmental conditions cause seals to fail and allow contaminants to damage ...

Product Custom Attributes

Highlight

pfos snap in vent

,

breathable vent valve

,

breathable snap in vent

PRODUCT NAME :

Screw-In Vent Valve

PRODUCT MODEL :

XINXIA-LWVV_M8*1.25-10

MEMBRANE MODEL:

XINXIA-TB20WO-E

PHYSICAL PROPERTIES:

PFOA & PFOS

REFERED TEST STANDARD:

US EPA 3550C & US EPA 8321B

UNIT:

-40℃ To 125℃

TYPICAL DATA:

PFOA & PFOS Free

Product Description

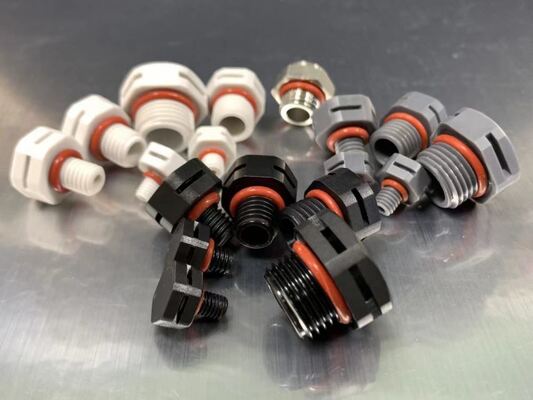

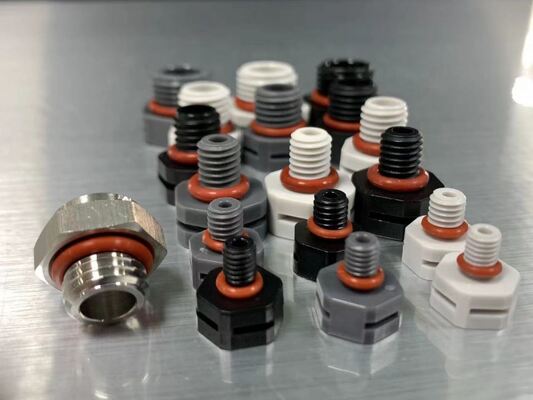

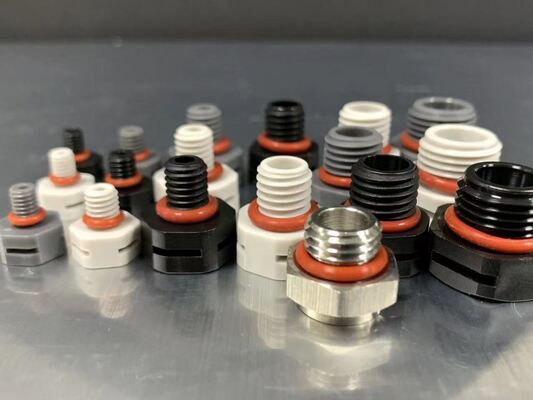

XINXIA® Screw-In Breathable Valve

Screw in vent valve XINXIA-LWVV_M8*1.25-10

Equalize pressure and reduce condensation in sealed enclosures, protecting sensitive electronics from harsh environments.

Changing harsh environmental conditions cause seals to fail and allow contaminants to damage sensitive electronics. XINXIA® Screw-In Breathable Valve effectively equalize pressure and reduce condensation in sealed enclosures, while keeping out solid and liquid contaminants. They improve the safety, reliability and service life of outdoor electronic devices. XINXIA® Screw-In Breathable Valve is designed to provide Hydrophobic/Oleophobic protection and withstand the mechanical stresses of challenging environments.

Key Benefits:

✅ Equalizes pressure to prevent seal failure
✅ Reduces condensation to protect electronics
✅ Keeps out solid and liquid contaminants
✅ Improves safety and reliability
✅ Extends service life of outdoor devices

Target Industries: Outdoor electronics, telecommunications, automotive, industrial enclosures.

Applications: LED lighting, junction boxes, sensors, control panels.

Product Attributes

FOB Unit: piece

Product MOQ: Contact the supplier

FOB Price: 0

Packaging & Delivery: Contact the supplier

Technical Specifications

Property	Value
Product Name	Screw-In Vent Valve
Product Model	XINXIA-LWVV_M8*1.25-10
Product Diagram
Membrane Model	XINXIA-TB20WO-E
Thread SPEC	M8*1.25-10
Valve Color	Black/White/Gray
Valve Material	Nylon PA66
Seal ring Material	Silicone Rubber
Membrane Construction	PTFE/PET non-woven
Membrane Surface Property	Oleophobic/Hydrophobic
Typical Air Flow Rate	2000 ml/min/cm2 @ 7KPa
Water Entry Pressure	≥60 KPa dwell 30 sec
IP Grade	IP67/IP68
Water Vapor Transmission Rate	>5000 g/m2/24h
Service Temperature	-40℃ ~ 125℃
ROHS	Meet ROHS Requirements (ROHS)
PFOA & PFOS	PFOA & PFOS Free
