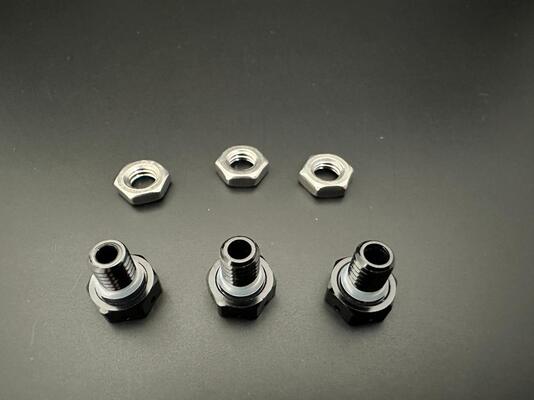

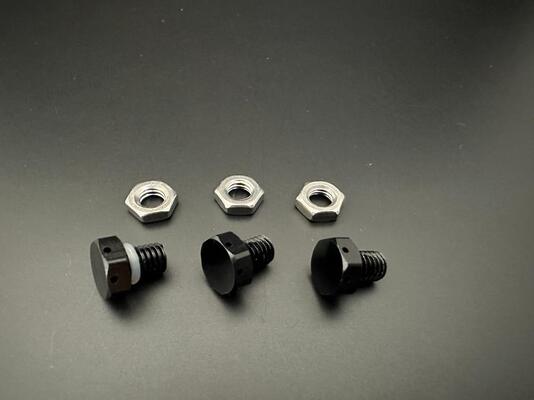

8.0mm Vent Valve Stainless Steel Automatic Air Vent
Key Attributes
Brand Name:
XINIXIA
Model Number:
CJ06-B039
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
5000pcs
Price:
6 RMB/PCS
Supply Ability:
50000 PCS/ DAY
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
CJ06-B039 Part name/ Product model Metal threaded waterproof air permeable valve Customer / Customer name P/N/ code CJ06-B039 Customer P/N / Customer part number product appearance Thread specifications M06X1.0 Length of thread 8.0mm Material quality Stainless steel ☑ aluminum alloy Copper Other ...
Product Custom Attributes
Highlight
8.0mm Vent Valve
,Stainless steel automatic air vent
,automatic air vent 8.0mm
Part Name/ Product Model:
Metal Threaded Waterproof Air Permeable Valve
P/N/ Code:
CJ06-B039
Thread Specifications:
M06X1.0
Length Of Thread:
8.0mm
Material Quality:
Stainless Steel ☑ Aluminum Alloy Copper Other Please Note:
Colour:
Natural Color ☑ Oxidized Black Nickel Plating Other Please Note:
Gasket Ring:
Black O-ring ☑ Original Color O-ring Black Flat Washer Original Color Flat Washer
Logo:
Logo ☑ No Logo
Breathability & Water Resistance:
☑ M002≥60ml/min, IP67>10Kpa (about Equal To 1.0 M Water Pressure)
Working Temperature:
-40℃ ~125℃
Salt Atmosphere:
48 Hours (IEC 68-2-11)
Torsion:
0.5 ±0.1Nm
Product Description
CJ06-B039
|
Part name/ Product model |
Metal threaded waterproof air permeable valve |
|
Customer / Customer name |
|
|
P/N/ code |
CJ06-B039 |
|
Customer P/N / Customer part number |
product appearance
|
Thread specifications |
M06X1.0 |
|
Length of thread |
8.0mm |
|
Material quality |
Stainless steel ☑ aluminum alloy Copper Other Please note: |
|
Colour |
Natural color ☑ Oxidized black Nickel plating Other please note: |
|
Gasket ring |
Black O-ring ☑ Original color O-ring Black flat washer Original color flat washer |
|
Logo |
Logo ☑ No logo |
Product performance characteristics
|
Breathability & Water resistance |
☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure) |
|
Working temperature |
-40℃ ~125℃ |
|
Salt atmosphere |
48 hours (IEC 68-2-11) |
|
Torsion |
0.5 ±0.1Nm |
Design and dimensions
|
Product display |
|
Design dimension |
|
Installation suggestions
|
Recommended size |
|
Installation diagram |
|
