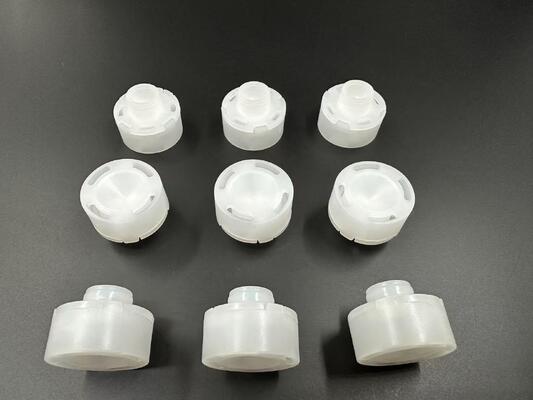

W20 Vent Valve IP67 IP68 Waterproof Breathable Valve Non Woven
Key Attributes
Brand Name:
XINXIA
Model Number:
W20 Vent valve
Place of Origin:
CHINA
Certification:
ISO9001
Minimum Order Quantity:
5000pcs
Price:
0.6 RMB/PCS
Supply Ability:
100000PCS/DAY
Delivery Time:
5-8 working days
Payment Terms:
T/T
Standard Packaging:
Corrugated Carton / Box
Product Summary
Product Overview Snap in Vent valve W20 Vent valve PRODUCT NAME Snap-In Vent Plug PRODUCT MODEL XINXIA-Vent Plug_W20_E20WO PRODUCT DIAGRAM MEMBRANE MODEL XINXIA-E20WO APPLICATION FIELD Chemicals Packaging APPLICATION CHEMICAL Bleacher, Disinfectant, Amino Acid, Agrochemicals, Liquid Fertilizer ...
Product Custom Attributes
Highlight
w20 vent valve
,vent valve ip67
,ip68 waterproof breathable valve
PRODUCT NAME:
Snap-In Vent Plug
PRODUCT MODEL:
XINXIA-Vent Plug_W20_E20WO
PRODUCT DIAGRAM:
MEMBRANE MODEL:
XINXIA-E20WO
APPLICATION FIELD:
Chemicals Packaging
APPLICATION CHEMICAL:
Bleacher, Disinfectant, Amino Acid, Agrochemicals, Liquid Fertilizer
PHYSICAL PROPERTIES:
P F OA & PF OS
TEST METHOD:
US EPA 3550C & US EPA 8321B
UNIT:
℃
TYPICAL DATA:
PF OA & PF OS F Re E
Product Description
Product Overview
Snap in Vent valve W20 Vent valve
| PRODUCT NAME | Snap-In Vent Plug |
|---|---|
| PRODUCT MODEL | XINXIA-Vent Plug_W20_E20WO |
| PRODUCT DIAGRAM | |
| MEMBRANE MODEL | XINXIA-E20WO |
| APPLICATION FIELD | Chemicals Packaging |
| APPLICATION CHEMICAL | Bleacher, Disinfectant, Amino Acid, Agrochemicals, Liquid Fertilizer |
Product Properties
|
PHYSICAL PROPERTIES |
TEST METHOD |
UNIT |
TYPICAL DATA |
|
Plug Material |
/ |
/ |
HDPE |
|
Plug Color |
/ |
/ |
White |
|
Membrane Construction |
/ |
/ |
PTFE/PO non-woven |
|
Membrane Surface Property |
/ |
/ |
Oleophobic & Hydrophobic |
|
Typical Air Flow Rate |
ASTM D737 |
ml/min @ 7KPa |
4500 |
|
Water Entry Pressure |
ASTM D751 |
KPa dwell 30 sec |
≥90 |
|
IP Grade |
IEC 60529 |
/ |
IP67/IP68 |
|
Moisture Vapor Transmission |
ASTM E96 |
g/m2/24h |
>5000 |
|
Oleophobic Grade |
AATCC 118 |
Grade |
≥7 |
|
Service Temperature |
IEC 60068-2-14 |
℃ |
-40℃ ~ 125℃ |
|
ROHS |
IEC 62321 |
/ |
Meet ROHS Requirements |
|
P FOA & PF OS |
US EPA 3550C & US EPA 8321B |
/ |
PF O A & PF OS F re e |
