0.6–1.0 mm Wax-Free Aluminum Foil Paperboard Induction Seal Liner for Glass Coffee Jars

Product Overview

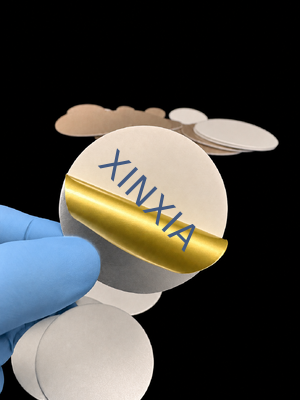

The XINXIA 0.6–1.0 mm aluminum foil paperboard induction seal liner is specially developed for sealing glass coffee jars and other glass packaging containers. Its composite structure combines a supportive paperboard backing with an induction-sealable aluminum foil layer, providing reliable sealing performance while maintaining a clean and professional package appearance.

Unlike traditional wax-laminated induction liners, this product uses a wax-free composite separation structure. After induction sealing, the paperboard backing separates from the aluminum foil without leaving visible wax residue on the foil surface. The aluminum foil remains smoothly sealed over the glass container opening, helping protect coffee products against moisture, dust, odors, and external contamination.

The liner thickness is available from 0.6 mm to 1.0 mm, while the diameter and shape can be customized according to the bottle opening, cap structure, and sealing-machine requirements. It is suitable for coffee roasters, packaging manufacturers, glass jar suppliers, and food brands seeking a cleaner and more reliable induction sealing solution.

Cause: Common Problems When Sealing Glass Coffee Jars

Roasted coffee beans and ground coffee are highly sensitive to moisture, oxygen, external odors, and environmental contamination. If the jar opening is not properly sealed, the coffee may gradually lose its aroma, flavor, and freshness during storage, transportation, or retail display.

Traditional aluminum foil paperboard liners commonly use wax as a temporary bonding or separation layer. During induction sealing, heat melts the wax and allows the aluminum foil to separate from the paperboard backing. However, unsuitable material combinations or uncontrolled sealing temperatures may cause visible wax residue to remain on the foil surface.

This residue can create several problems:

• An unattractive or uneven foil appearance
• A greasy or sticky surface after sealing
• Inconsistent separation between paperboard and aluminum foil
• Reduced packaging quality and consumer confidence
• Difficulty maintaining a clean, premium presentation
• Greater sensitivity to the induction-sealing temperature window

Glass containers also present a specific sealing challenge because their bottle-mouth dimensions, flatness, and surface treatment can vary. A liner must therefore be matched carefully with the glass jar, closure, sealant layer, and induction-sealing equipment.

Solution: Wax-Free Composite Induction Sealing

XINXIA provides a wax-free aluminum foil paperboard liner designed specifically for glass coffee jar applications. Instead of relying on a conventional wax separation layer, the liner uses a composite structure that allows the aluminum foil and paperboard backing to separate cleanly during induction sealing.

After the cap is tightened and the container passes through the induction-sealing machine, the foil’s sealing layer bonds to the glass jar opening. The paperboard backing remains inside the cap and separates from the foil, leaving a clean aluminum foil surface without wax residue.

This solution helps packaging manufacturers and coffee brands achieve:

• Clean separation after induction sealing
• No visible wax residue on the sealed foil
• Improved moisture and contamination protection
• Neat, professional packaging appearance
• Custom compatibility with different glass jar openings
• Better support for storage, transportation, and retail display
• Stable liner positioning inside the cap

Before mass production, we recommend conducting sealing tests with the customer’s actual glass jar, cap, product, and induction-sealing machine.

Specifications

Applications

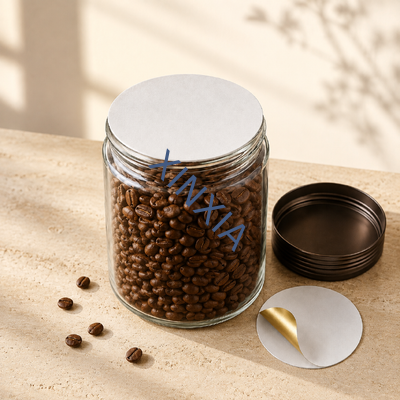

Roasted Coffee Bean Packaging

The liner can be used with glass jars containing roasted coffee beans. It provides a sealed barrier at the jar opening and helps reduce exposure to moisture, dust, and external odors before the package is opened.

Ground Coffee Packaging

Ground coffee has a large surface area and can quickly absorb moisture and environmental odors. A properly sealed aluminum foil layer helps preserve its condition during distribution and storage.

Premium and Specialty Coffee Jars

For premium coffee products, packaging appearance is especially important. The wax-free separation structure leaves a clean foil surface, supporting a more refined and consistent presentation.

Other Dry-Food Glass Containers

Subject to compatibility testing, the liner may also be used for tea, cocoa powder, powdered beverages, spices, nuts, and other dry products packaged in glass containers.

How It Works

First, the aluminum foil paperboard liner is inserted into the cap with the sealing side facing the glass jar opening. The cap is then tightened to apply even pressure across the bottle mouth.

When the closed container passes through an induction-sealing machine, the electromagnetic field heats the aluminum foil. The heat activates the sealing layer, which bonds the foil to the glass container opening. At the same time, the composite separation structure allows the paperboard backing to release from the aluminum foil.

After cooling, the foil remains sealed to the glass jar, while the paperboard backing stays inside the cap. When the cap is removed, the customer sees a clean foil seal without visible wax residue.

Correct cap torque, pressure, induction power, conveyor speed, sealing time, and cooling conditions are essential for consistent results.

How to Choose the Correct Liner

Confirm the Glass Jar Opening

Provide the outer diameter, inner diameter, sealing width, and clear photographs or technical drawings of the glass bottle mouth. The liner diameter should match the effective sealing area.

Check the Cap Structure

The cap must provide sufficient and evenly distributed pressure during induction sealing. Please confirm the cap’s internal diameter, depth, thread design, and available liner space.

Select the Appropriate Thickness

A 0.6 mm liner is suitable when a relatively thin backing is required. Thicker options up to 1.0 mm can provide additional support and compression. Final thickness selection should be based on the closure design and actual sealing test.

Verify the Glass Surface

Different glass containers may have different surface treatments or coatings. The sealing layer must be tested against the actual jar to confirm bonding performance.

Conduct a Complete Packaging Test

For the most reliable result, test the liner with the actual container, cap, product, filling process, induction machine, and expected storage conditions. XINXIA can provide customized samples for evaluation before mass production.

FAQ

1. Will wax remain on the aluminum foil after induction sealing?

No. This product uses a wax-free composite separation structure. Under suitable sealing conditions, the paperboard separates cleanly without leaving visible wax residue on the foil surface.

2. Can the liner diameter be customized?

Yes. The diameter and die-cut shape can be manufactured according to the glass jar opening and cap dimensions.

3. What thicknesses are available?

The standard customizable thickness range is 0.6–1.0 mm. We can recommend a suitable thickness after reviewing your glass jar and cap structure.

4. Can it seal every type of glass container?

Glass surfaces, bottle-mouth designs, and coatings vary between manufacturers. Sample testing is therefore required to confirm compatibility before placing a bulk order.

5. What information is required for a quotation?

Please provide the liner diameter, required thickness, glass jar and cap drawings or samples, order quantity, packaging requirements, and photographs of the bottle opening. Information about your induction-sealing equipment is also helpful.
